:: Description ::    :: Features ::    :: Applications ::    :: Technical Specifications ::

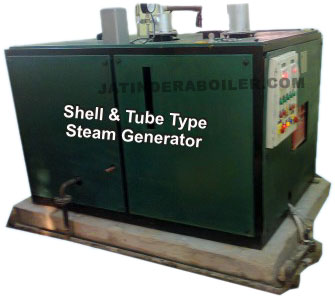

Shell and Tube Type Steam Generator

Smoke Tube Boiler, Cross Tube Boiler, Smoke/Cross Tube Steam Boiler, Smoke Tube Steam Boiler, Cross Tube Steam Boiler     Smoke Tube Boiler, Cross Tube Boiler, Smoke/Cross Tube Steam Boiler, Smoke Tube Steam Boiler, Cross Tube Steam Boiler
Smoke/Cross Tube Steam Boiler

 :: Send Enquiry ::    :: Top of Page ::    :: Home Page ::

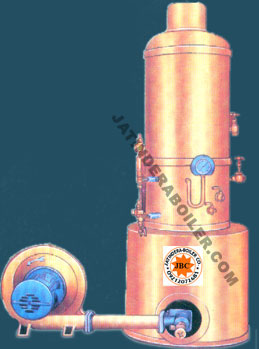

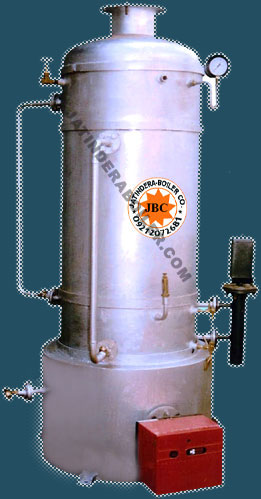

  • The construction is of a packaged type vertical design multistage shell and tube boiler. The water is in the shell side and the flue gases of combustion travel through the tubes in the shell. This is a rugged design boiler which can withstand a higher degree of hardness in the water. Blowdown valves are provided for removal of TDS in the boiler water.

  • This is a vertical design shell and tube type boiler suitable for various fuels like oil, wood, coal, rice husk, briquettes etc. or a combination of these fuels.

  • The furnace for solid fuels like wood, coal, rice husk etc. is constructed below and the boiler is placed vertically above it. The fuel is burnt on the grate bars provided in the furnace and the flue gases travel upwards through the vertical tubes in the boiler transferring heat to the water inside the shell. The water feeding can be manual or automatic through an Automatic water level controller as per customers requirements. In case of oil or gas firing, options are available for manual burners or imported fully automatic burners.

 :: Send Enquiry ::    :: Top of Page ::    :: Home Page ::

  • High Operating efficiency

  • High Combustion efficiency

  • Qualified attendant NOT required

  • Large-scale reduction in KVA demand

  • Easy access for inspection and cleaning

  • Low system lag and rapid steaming response

  • Failsafe design, dependable safety instruments

  • No overheating of tubes, as these are not exposed to flame

  • Smoke tube design tolerates a higher degree of hardness in water.

 :: Send Enquiry ::    :: Top of Page ::    :: Home Page ::

  • Milk Industry

  • Food Processing industry

  • Thermocole manufacturing

  • Pharmaceuticals

  • Cables and wires industry

  • Garment Industry

:: Send Enquiry ::    :: Top of Page ::    :: Home Page ::
